Headlight with LED Bulbs Cold White Plus LED Tail light - Driver & Passenger Side (Fit: 2012 - 2019 Hino 155 165 195 )
OE Replacement and Dot Approved

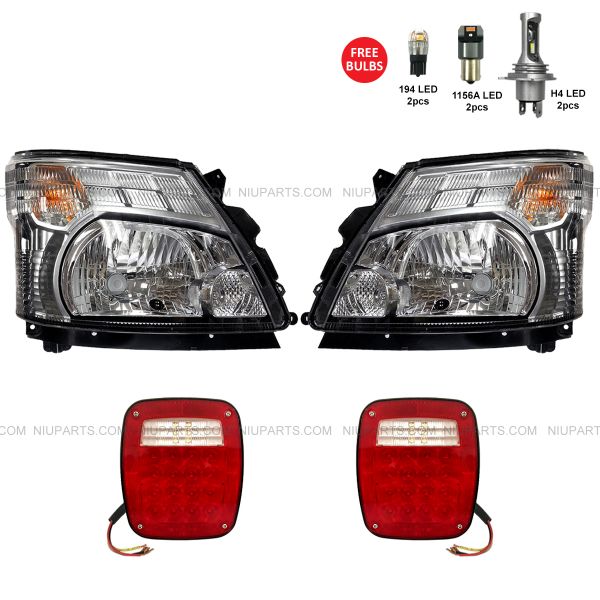

Total 4 pieces items are included:
Item #1 & Item #2 -> Headlight Driver & Passenger Side
Fit: 2009-2010 Hino 155 Truck
Item #3 & Item #4 -> 2 Pcs LED Tail Light
IP68 Waterproof & 12V
Function:
License Plate Illuminator : 4 Diodes Clear/White LED Light
Tail/Stop/Break/Turn Light : 16 Diodes Red/Red LED Light
Reverse Light : 18 Diodes Clear/White LED Light
4-color Wire connection:
White wire - Ground
Black wire - 16 Red Leds light up in low brightness + 4 White license illuminator works.
Yellow wire - 18 white Leds work as back up light
Red wire - 16 Red Leds light up in high brightness
Fit: 2012 - 2019 Hino 155 165 195
LED Bulbs: 2 Pcs H4, 2 Pcs 1156A, 2 Pcs 194 Include
H4 LED Bulb Spec:
Raw Lumens: 2500 Lumens
Effective Lumens: 1800 Lumens
Diodes: 6 Diodes
Operating Voltage (V): 12-24 Volts
LED Power: 12 Watts
Amperage: 1.67 Amps @ 12V / 0.83 Amps @ 24V Color
Temperature: 6500K
Housing Material: Aluminum
Waterproof Rating: IP65 Rating
1156A LED Bulb Spec:
Beam: Single Beam
Base Type: BA15S
Effective Lumens: 200 Lumens
Diodes: 6 Diodes
Operating Voltage (V): 12-24 Volts
LED Power: 3 Watts
Color Temperature: 6500K
Housing Material: high-quality thermoformed plastic
Waterproof Rating: IP65 Rating
194 LED Bulb Spec:
Beam: Single Beam
Base Type: W2.5x16q
Effective Lumens: 140 Lumens
Diodes: 4 Diodes
Operating Voltage (V): 12-24 Volts
LED Power: 1.7 Watts
Color Temperature: 6500K
Housing Material: high-quality thermoformed plastic
Waterproof Rating: IP65 Rating
